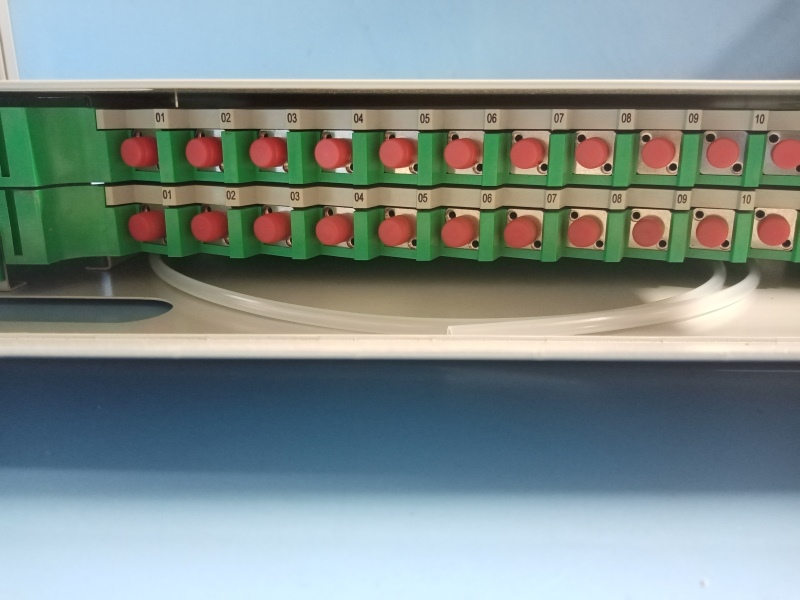

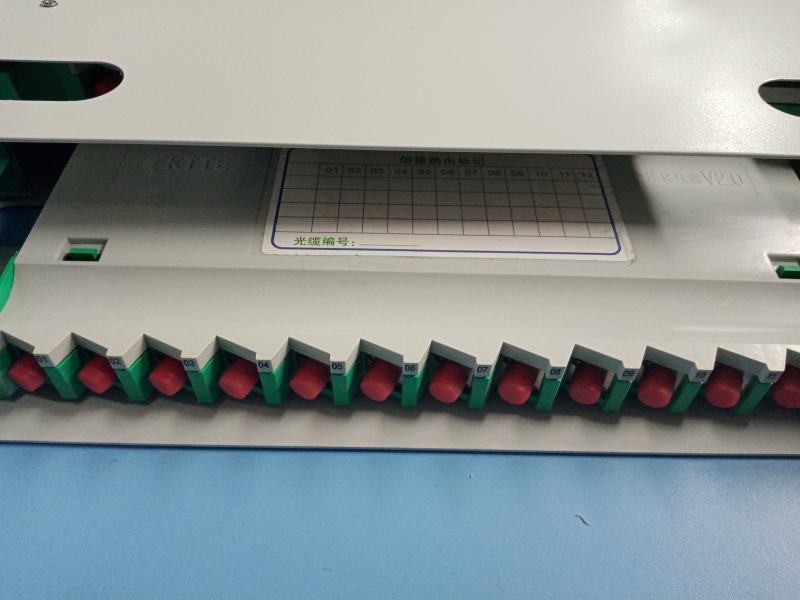

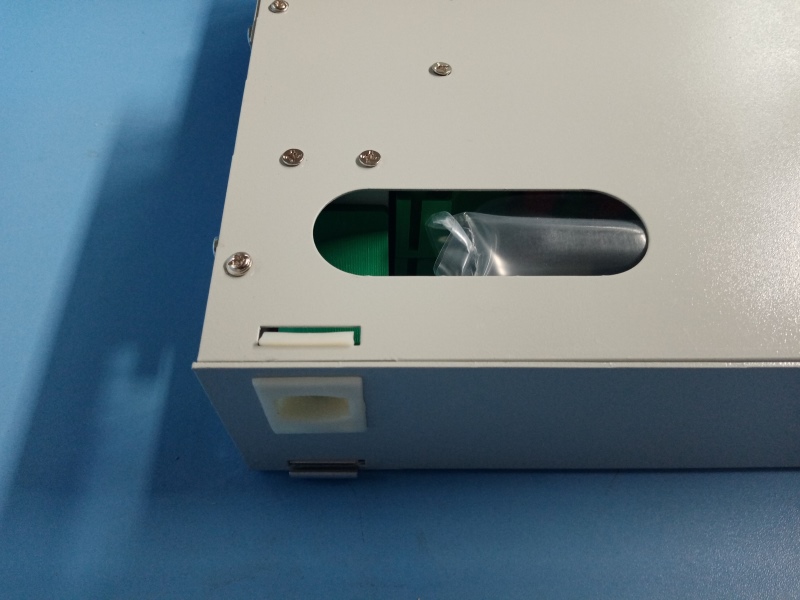

ODF
Description：
1. The fiber optic equipment for communication distribution house has the functions of fixing, splicing, adjusting cables, protecting fibers and pigtails.
2. The ODF can be for exclusive use, also installed in the same frame with digital distribution unit and voice distribution unit to be a integrated ODF.
3. Flexible configuration, simple installation, easy maintenance and being manageable enables to be an essential equipment of fiber arrangement, jumpers, splicing and approaching for optical fiber communication (OFC) and optical cable termination.
Characteristic：
1. Applicable for banding or non-banding optical cables
2. Cold-rolled steel box with normal size of 19 inches can be installed onto a 19 inches support frame.
3. Mountable for kinds of adapters such as FC, SC, ST, LC, etc.
4. Capacity:12-144 F
5. Full-service of protection on jumper, keeping the bend radius not less than 40mm.
Technical requirement：
1. Operating temperature:-40℃～+60℃
2. Relative humidity: ≤90%(+30℃)
3. Inserting duration life>1000 times
4. Inserting loss of fiber optic connector: ≤0.3dB
5. HV protection, insulation resistance between frames＞20000MΩ/min, non- breakdown, non-arcing.
